NEMA23 Stepping Motor, 1.8° step angle stepper motor, 2-Phase Stepper Motors

Brand Name : AdamPower

Model Number : 23HS24

Certification : ISO,CE,ROHS,CCC

Place of Origin : China

MOQ : 1

Price : 10-20USD/PC

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 100000PCS

Delivery Time : 2-7 Days

Packaging Details : Carton

Step Accuracy : ±5%

Resistance Accuracy : ±10%

Inductance Accuracy : ±20%

Temperature Rise : 80°C MAX

Ambient Temperature Range : -20°C~ +50°C

Storage Temperature Range : -30°C~ +60°C

Insulation Resistance : 100M Ω MIN. 500V DC

Dielectric Strength : 500V AC 1min

Radial Play : 0.02mm MAX. (450g Load)

End Play : 0.08mm MAX. (450g Load)

Max. radial force : 75

Max. axial force : 15

Contact Now

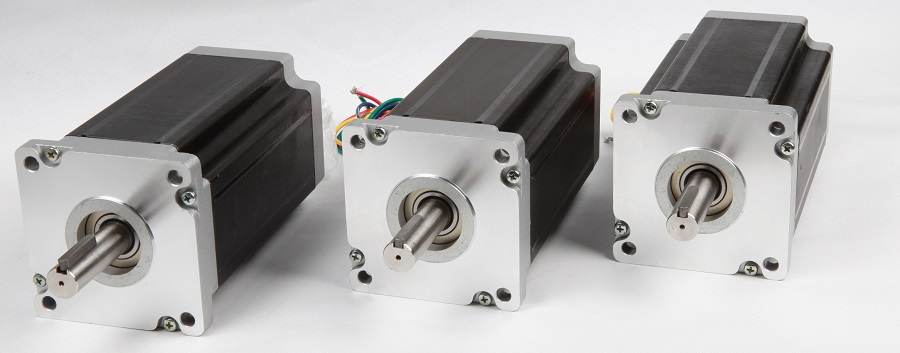

NEMA23 Stepping Motor, 1.8° step angle stepper motor,

2-Phase 57mm Stepper Motors





Electrical Specifications:



Series Step Motor Rated Rated Phase Phase Holding Detent Rotor Lead Motor diameter of shaft
Mode Angleº Length voltage Current Resistance Indutance Torque(MIN) Toruue Torque Wire Weight mm
    mm v A Ω Mh N.cm (MAX)N.cm g.cm2   KG
23HS4406 1.8 41 7.44 0.62 12 24 55 2.5 150 4 0.47 6.35
23HS4610 1.8 41 5.2 1 5.2 5.5 40 2.5 15O 6 0.47 6.35
23HS4620 1.8 41 2.8 2 1.4 1.4 39 2.1 120 6 0.45 6.35
23HS4428 1.8 41 2 2.8 0.7 1.4 55 2.1 120 4 0.45 6.35
23HS4630 1.8 41 1.9 3 0.63 0.6 39 2.1 120 6 0.45 6.35
23HS5610 1.8 51 6.6 1 6.6 8.2 72 3.6 275 6 0.65 6.35
23HS5620 1.8 51 3.3 2 1.65 2.2 72 3.6 275 6 0.65 6.35
23HS5425 1.8 51 3 2.5 1.2 3.2 110 2.8 190 4 0.52 6.35
23HS5428 1.8 51 2.3 2.8 0.83 2.2 101 3.6 275 4 0.65 6.35
23HS5630 1.8 51 2.2 3 0.74 0.9 72 3.6 275 6 0.65 6.35
23HS6610 1.8 56 7.4 1 7.4 10 90 4 300 6 0.7 6.35
23HS6620 1.8 56 3.6 2 1.8 2.5 90 4 300 6 0.7 6.35
23HS6425 1.8 56 3.25 2.5 1.3 4.2 110 3.5 280 4 0.68 6.35
23HS6430 1.8 56 2.4 3 0.8 2.4 110 3.5 280 4 0.68 6.35
23HS6630 1.8 56 2.3 3 0.75 1.1 90 4 300 6 0.7 6.35
23HS6442 1.8 56 1.68 4.2 0.4 1.2 110 3.5 280 4 0.68 6.35
23HS7410 1.8 64 7.5 1 7.5 20 150 5 380 4 0.85 6.35
23HS7425 1.8 64 3.75 2.5 1.5 4.5 150 5 380 4 0.85 6.35
23HS7430 1.8 64 2.4 3 0.8 2.3 150 5 380 4 0.85 6.35
23HS7442 1.8 64 2.31 4.2 0.55 1.2 150 5 380 4 0.85 6.35
23HS8610 1.8 76 8.6 1 8.6 14 135 6.8 480 6 1 6.35
23HS8615 1.8 76 6.75 1.5 4.5 7.8 140 6 440 6 1.05 6.35
23HS8620 1.8 76 4.5 2 2.25 3.6 135 6.8 480 6 1 6.35
23HS8425 1.8 76 4.5 2.5 1.8 6.5 180 6 440 4 1.05 6.35
23HS8630 1.8 76 3 3 1 1.6 135 6.8 480 6 1 6.35
23HS8421 1.8 76 4.2 2.1 2 6.4 180 6 440 4 1.05 6.35
23HS8430 1.8 76 3 3 1 3.5 190 6 480 4 1.05 6.35
23HS8442 1.8 76 2.5 4.2 0.6 1.8 180 6 440 4 1.05 6.35
23HS1430 1.8 100 4.2 3 1.4 5.5 250 10 680 4 1.25 6.35
23HS1442 1.8 100 3.36 4.2 0.8 3 250 10 680 4 1.25 6.35
23HS2430 1.8 112 4.8 3 1.6 6.8 280 12 800 4 1.4 8
23HS2442 1.8 112 3.78 4.2 0.9 3.8 280 12 800 4 1.4 8

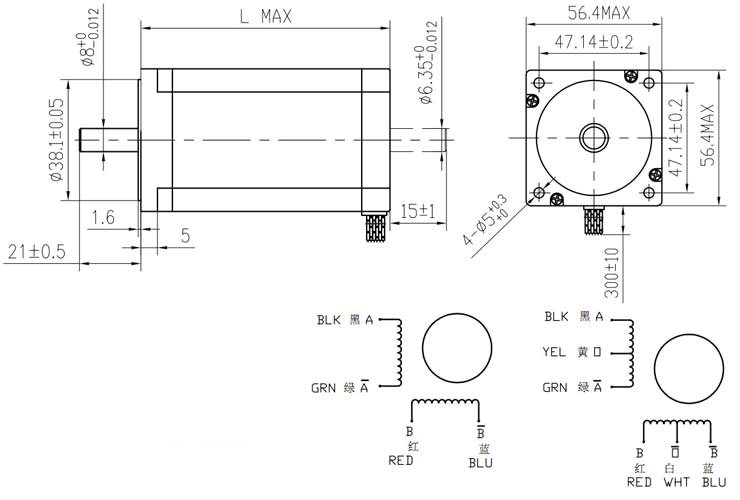

Mechanical Dimensions and Wiring Diagram:

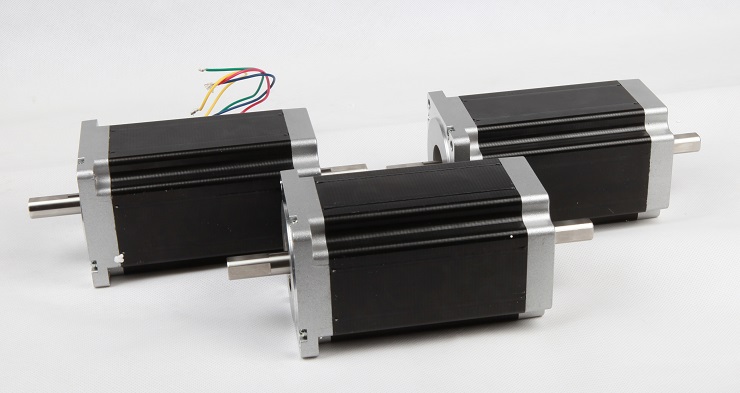

Double Shaft Type stepper motor for CLOSED loop working.

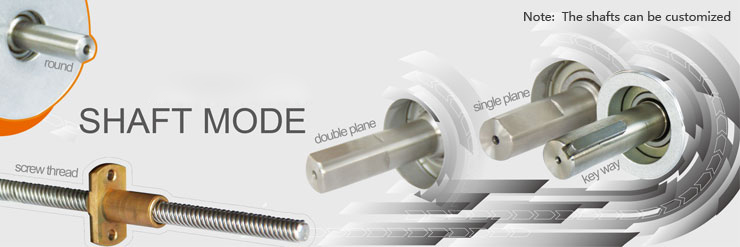

Shaft Mode can be customized as the requirement.

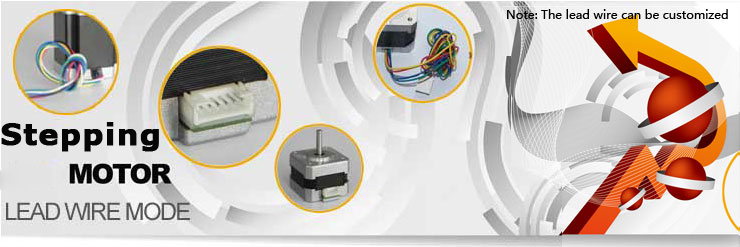

Lead Wire Mode Options:



Note: The Stepping Motors Can be integrated with driver or controller as above.
